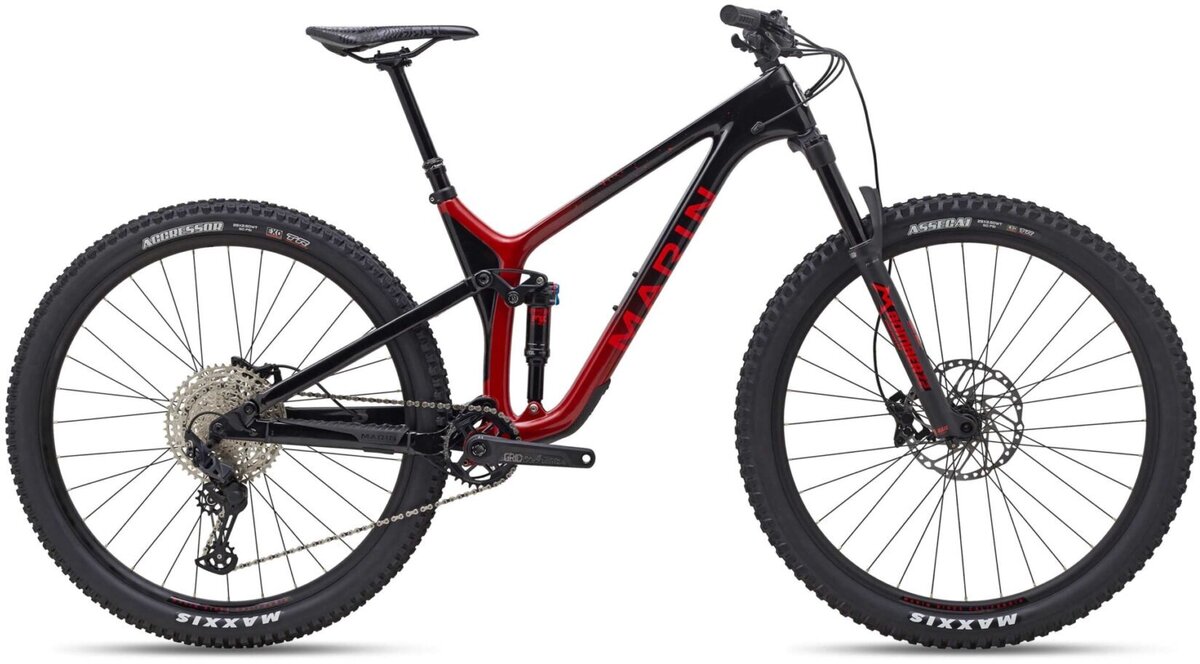

Marin Rift Zone Carbon 29 1
This item is currently not available.
Details
The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.
Key upgrades from Rift Zone 29 3:
- Unidirectional Carbon Fiber Front Triangle
- Series 4 Alloy Rear End
| Size (mm) | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| A. STACK (mm) | 602.6 | 607.15 | 611.7 | 616.25 |
| B. REACH (mm) | 430 | 455 | 480 | 515 |
| C. HEADTUBE ANGLE | 65.5° | 65.5° | 65.5° | 65.5° |
| D. HEADTUBE LENGTH (mm) | 100 | 105 | 110 | 115 |
| E. SEATTUBE ANGLE | 76° | 76° | 76° | 76° |
| F. SEATTUBE LENGTH (mm) | 390 | 400 | 425 | 430 |
| G. TOPTUBE EFFECTIVE (mm) | 580.24 | 606.36 | 632.51 | 668.65 |
| H. BB HEIGHT (mm) | 344 | 344 | 344 | 344 |
| I. BB DROP (mm) | 34 | 34 | 34 | 34 |
| J. CHAINSTAY (mm) | 425 | 425 | 425 | 425 |
| K. WHEELBASE (mm) | 1158.92 | 1186 | 1213 | 1252 |
| Small | 5'3" to 5'6" |
|---|---|
| Medium | 5'6" to 5'10" |
| Large | 5'10" to 6'1" |
| X-Large | 6'1" to 6'4" |
Specs
| Frame | Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs |
|---|---|
| Fork | Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 130mm Travel, Kabolt Bolt-On Axle, 44mm Offset |
| Rear Shock | Fox Float DPS, Performance Series, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom |
| Rims | Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible |
| Hubs |
Front: Forged Alloy, 110x15mm, Disc, 32H Rear: Forged Alloy, 148x12mm, Quad Sealed Bearings, Disc, 32H, Standard Freehub Body |
| Spokes | 14g Black Stainless Steel |
| Tires | Front: Maxxis Assegai 29x2.5”, 3C MaxxTerra, EXO, Tubeless Compatible Rear: Maxxis Aggressor 29x2.5”, 3C Maxx Terra, EXO, Tubeless Compatible |
| Bottom Bracket | Mego EXO 73mm BSA |
| Crankset | New FSA GRID, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing |
| Shifters | Shimano SLX, 12-Speed, SL-7100R |
| Rear Derailleur | Shimano SLX, 12-Speed, SGS |
| Cassette/Freewheel | SunRace, 12-Speed, 11-51T, ED Black |
| Chain | KMC X-12 Silver and Black |
| Brakes | Shimano BR-MT420, 4-Piston Hydraulic Disc, 203mm Rotor[F] 180mm[R] |
| Brake Levers | Shimano BL-M4100 Hydraulic Lever, I-Spec EV Compatible |
| Handlebars | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Tape/Grips | Marin Single Clamp Locking |
| Stem | Marin 3D Forged Alloy, 35mm |
| Headset | FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Seatpost | X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm |
| Saddle | Marin Speed Concept |
| Pedals | Sold separately |
* Subject to change without notice.
